PONTIS 190PNT.4.01-I1431
Luminaire height 300mm.
Protection rating against dust and moisture: IP66 – full protection.
Protection rating for resistance against harmful mechanical impacts: IK10.
Extruded aluminium body coated with polyester powder along with C4 treatment for corrosion resistance to guarantee further durability. Textured paint finish. Different RAL colour finishes available under request. C5-M special coating for highly corrosive environments is available under request.
4mm frontal polycarbonate diffuser.
Interior optics to control the light.
Anticondensation device.
Silicone gasket.
Highly efficient linear printed circuit board.
Built-in driver included. Ambient temperature: up to 50ºC.
Electronic options for light control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
A4 stainless steel locking screw. Optional supply of A2 stainless steel vandal-resistant screws.
IP68 connector not included, it can be ordered separately: F3.A3 (On/Off) / F3.A5 (DALI).
Pre-wiring of 15cm cable 3x1mm2.
Mounting plate for floor installation supplied with the fixture.
Sturdy base accessory to ensure high stability in public space F3.2.TRPN.
Luminaire luminous flux: 535lm
Luminaire connected power: 5,7 W
Luminaire efficiency: 94 lm/W
Light source luminous flux: 645lm
Light source power: 3,2 W
mA: 150 mA
Colour temperature: 5000K
Chromaticity Tolerance: MacAdam 3
CRI: >80

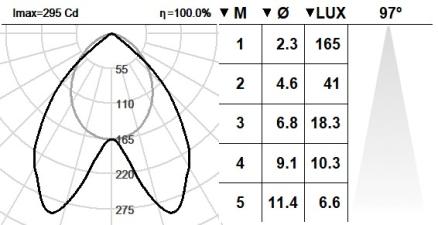

Beam angle: DASY
This product contains a light source of energy efficiency class: B
LED reliability at nominal Ta = 25ºC: 100.000h L80B10
Class: 1
IP: 66
IK: 10
Incandescent filament: 850
Luminaire dimensions: 427x62mm
Electronic Accessories:
S: On/Off
D: DALI-2/switchDIM
B: Bluetooth-Casambi [ 15m ]
-
80 Corten -
90 : RAL6005 Moss Green -
7: RAL9006: White Aluminium textured -
4: RAL7016: Anthracite Grey textured -
2: RAL9005: Jet Black textured -
1: RAL9010: Pure White textured
All RAL colours are available under request
