BARIS 200 251BRS.1-I1456
Wall or ceiling mounted recessed linear fixtures with symmetrical light distribution to achieve an effective task or general lighting.
Frameless linear fixture in 568mm length and in a width of 44mm.
Protection rating against dust and moisture: complete IP54.
Protection rating of resistance to harmful mechanical impacts: IK08.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.
Opal polycarbonate diffuser.
Highly efficient linear printed circuit board.
Built-in driver, included.
Electronic options for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Passive temperature management.
Ceiling-mounted using steel support with screws.
Pre-wiring of 35cm cable 3x1mm2.
Accessory for serial installation, reference F3.L2.BRS.
DOWNLOADS
ACCESSORIES AND FINISHES

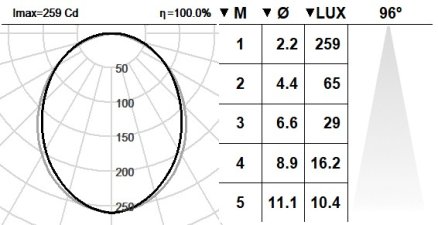

PHOTOMETRIC CHARACTERISTICS
- Luminaire luminous flux: 649lm
- Luminaire efficiency: 92 lm/W
- Light source luminous flux: 1225lm
- CRI: >80
- Colour temperature: 2700K
- Chromaticity Tolerance: MacAdam 3
- Beam angle: 100 º
- This product contains a light source of energy efficiency class: C
- LED reliability at nominal Ta = 25ºC: 100.000h L80B10
- Cd/Klm: 399
TECHNICAL DATA
- Class: I
- IP: 54
- Incandescent filament: 650 ºC
- Embedding dimensions: 569x47mm
- Luminaire dimensions: 568x44mm
- Height: 78 mm Kg
ELECTRICAL CHARACTERISTICS
- Luminaire connected power: 7,08 W
- Light source power: 6,4 W
- Constant current: 150 mA
ELECTRONIC EQUIPMENT:
-
S: On/Off (AC/DC, NOT looping through capable)
-
D: DALI-2/switchDIM/corridorFUNCTION
-
B: Bluetooth-Casambi
STANDARD FINISHES
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
TECHNICAL DATA
- Class: I
- IP: 54
- Incandescent filament: 650 ºC
- Embedding dimensions: 569x47mm
- Luminaire dimensions: 568x44mm
- Height: 78 mm
STANDARD FINISHES
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
