KIBRI 200 269KBR.24-I1255

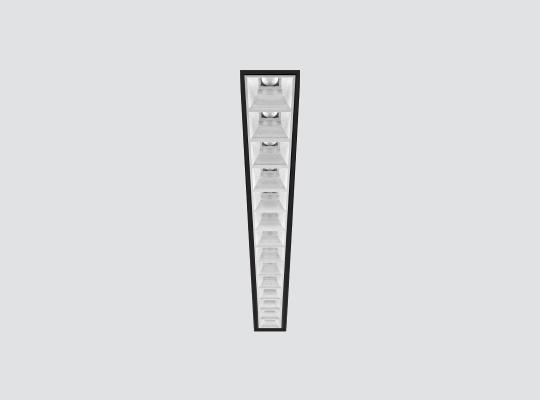

Recessed ceiling mounted linear downlights with symmetrical light distribution to achieve an effective task or general lighting.
Frameless linear fixture in 2804mm length and in a width of 50mm.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.
Metallised modular optics in 70 cells in silvered finish designed to ensure visual comfort.
Blind covers available with a length of 280mm or its multiples: accessory reference M5.Y.
Highly efficient linear printed circuit board.
Built-in driver, included.
Electronic options for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Passive temperature management.
Ceiling-mounted using steel support with screws.
Frameless linear fixture in 2804mm length and in a width of 50mm.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.
Metallised modular optics in 70 cells in silvered finish designed to ensure visual comfort.
Blind covers available with a length of 280mm or its multiples: accessory reference M5.Y.
Highly efficient linear printed circuit board.
Built-in driver, included.
Electronic options for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Passive temperature management.
Ceiling-mounted using steel support with screws.
It is possible to combine different lengths and junction modules in different ways to create customized design.
DOWNLOADS
ACCESSORIES AND FINISHES
PHOTOMETRIC CHARACTERISTICS
- Luminaire luminous flux: 4868lm
- Luminaire efficiency: 139 lm/W
- Light source luminous flux: 5350lm
- CRI: 80
- Colour temperature: 3000K
- Chromaticity Tolerance: MacAdam3
- Beam angle: 92 º
- This product contains a light source of energy efficiency class: C
- LED reliability at nominal Ta = 25ºC: 90.000h L80B10
TECHNICAL DATA
- Class: I
- IP: 20
- Incandescent filament: 650 ºC
- Embedding dimensions: 2804x53mm
- Luminaire dimensions: 2804x50mm
- Height: 69 mm Kg
ELECTRICAL CHARACTERISTICS
- Luminaire connected power: 35 W
- Light source power: 28 W
- Constant current: 150 mA
ELECTRONIC EQUIPMENT:
-
S: On/Off (AC/DC, NOT looping through capable)
-
SE: On/Off (AC/DC) + Battery 3h
-
D: DALI-2/switchDIM/corridorFUNCTION
-
DE: DALI-2/switchDIM+ 3 hours battery
-
DDE: DALI-2/switchDIM+ 3 hours battery (DALI)
-
B: Bluetooth-Casambi
Upgradeable, replaceable, repairable
STANDARD FINISHES
-
24: Black frame - silver reflector
All RAL colours are available under request
TECHNICAL DATA
- Class: I
- IP: 20
- Incandescent filament: 650 ºC
- Embedding dimensions: 2804x53mm
- Luminaire dimensions: 2804x50mm
- Height: 69 mm
STANDARD FINISHES
-
24: Black frame - silver reflector
All RAL colours are available under request
