TIRET 100

TIRET 100

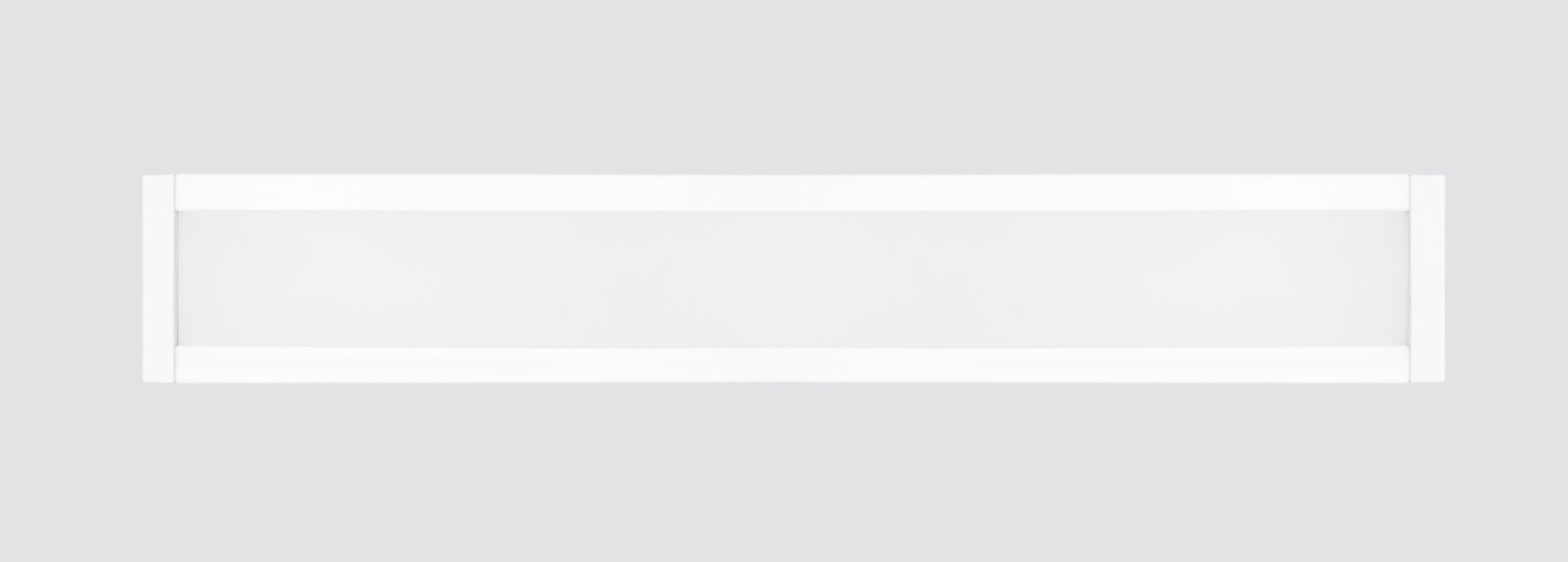

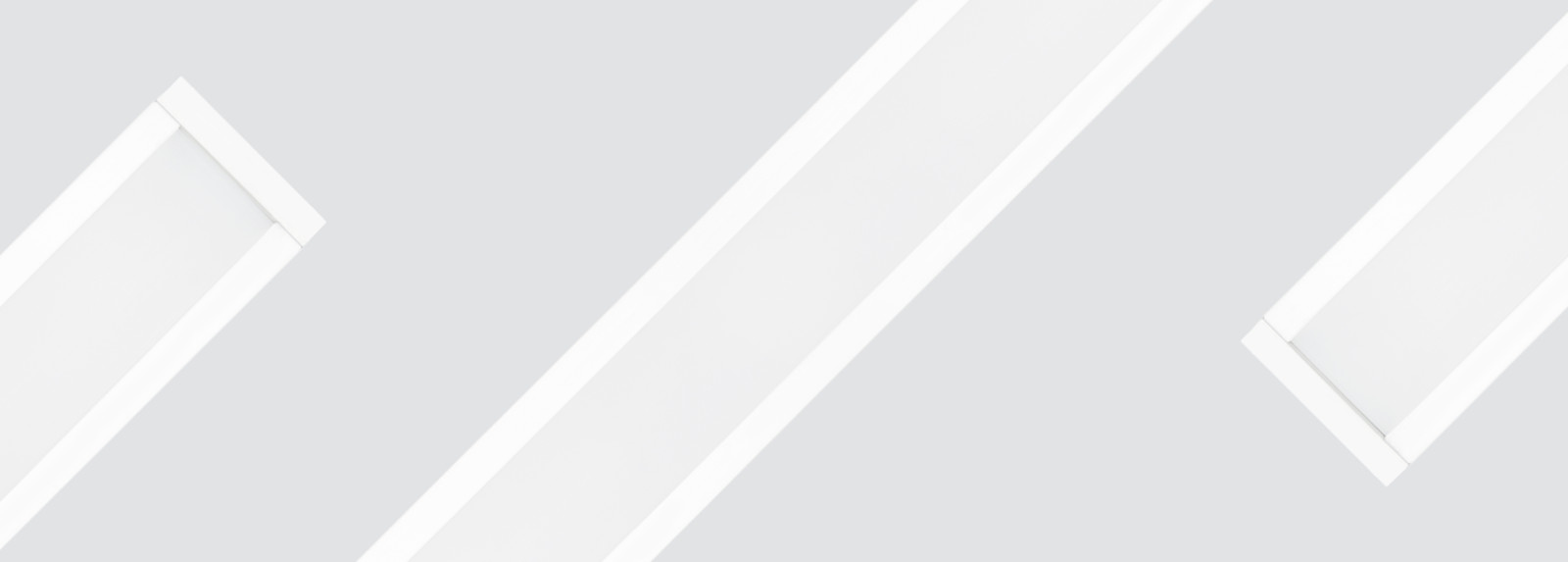

Wall or ceiling mounted recessed linear fixtures with symmetrical light distribution to achieve an effective task or general lighting.

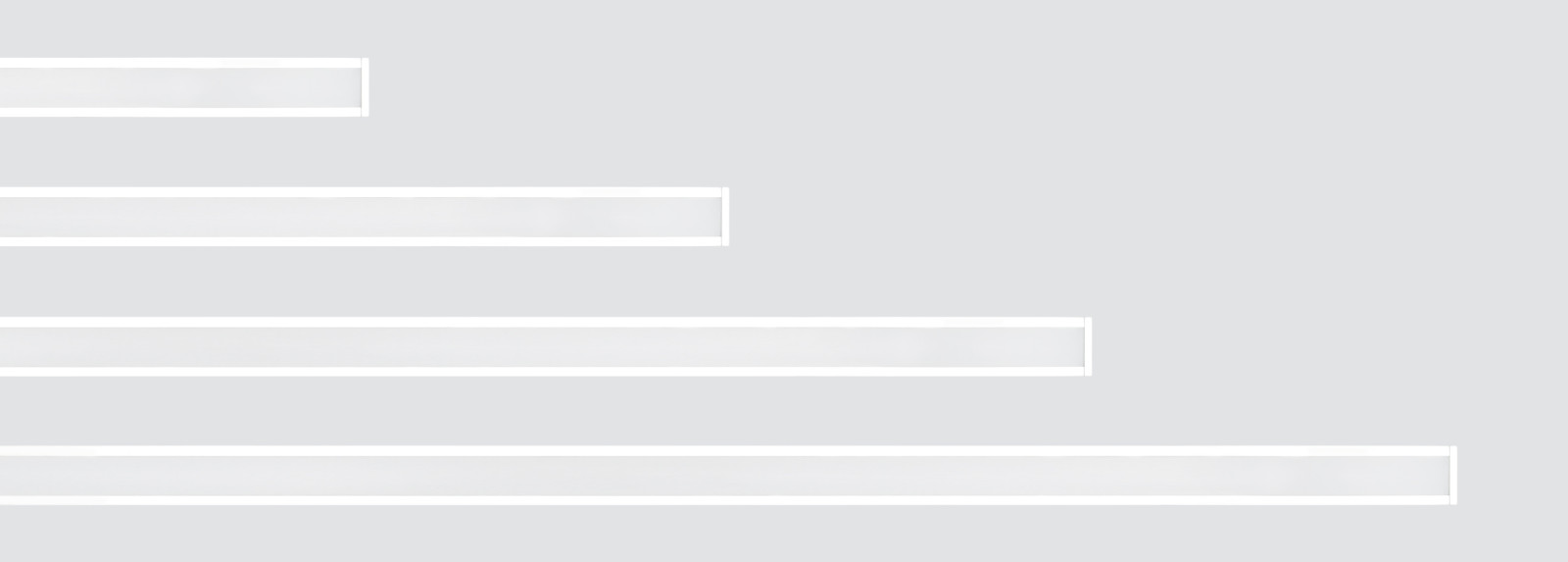

Linear fixtures available in 5 lengths 566mm, 846mm, 1126mm, 1406mm and 2806mm and in a width of 54mm.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.
Opal extruded polycarbonate diffuser.
Highly efficient linear printed circuit board.
Built-in driver.
Passive temperature management.
Ceiling-mounted using steel support with screws.
Suggested applications: private residences, offices, schools and universities, retail, showrooms, galleries, museums, conference halls, meeting rooms, banks, bars, restaurants, hotel receptions and similar installations.

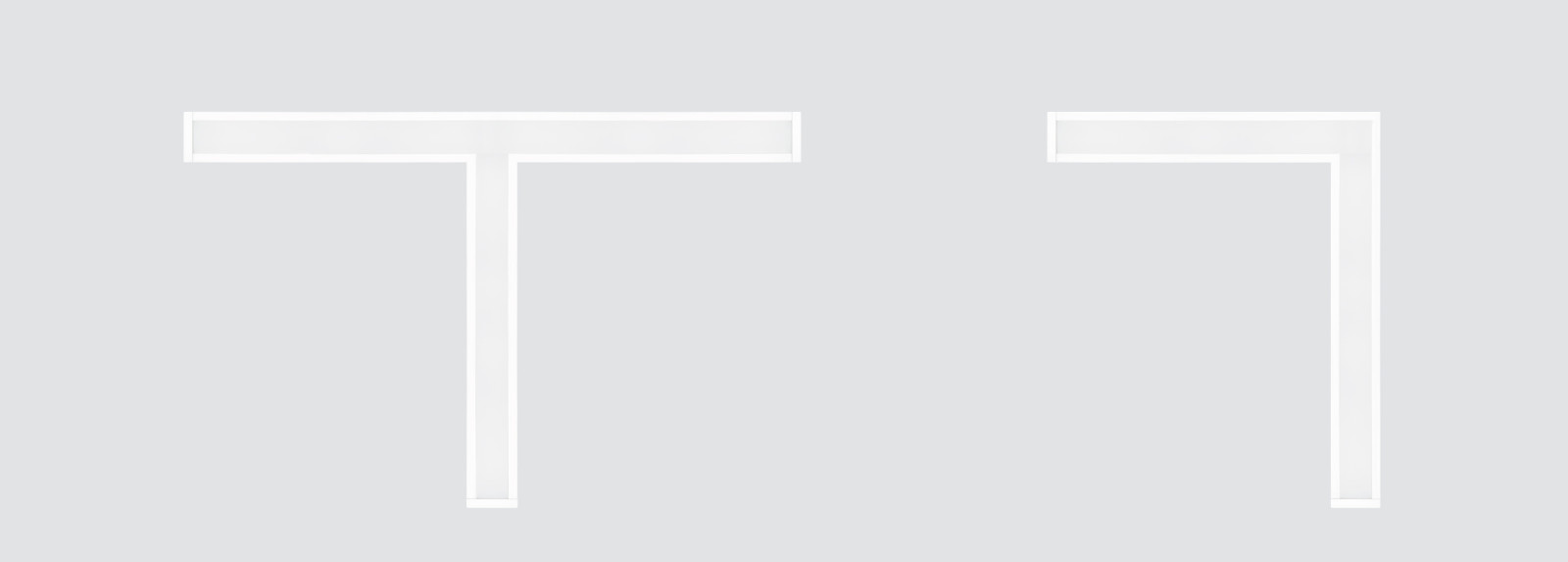

It is possible to combine different lengths and junction modules in different ways to create customized systems.

Product configurator

Tilt

Dimensions recessed

Height

Colour Temperature

CRI

UGR

Beam angle

mA

Accessories

Search results
Beam angle
Reference
Watt
Luminous flux of the luminaire
CRI
Colour Temperature
Embedding dimensions
Outer dimensions
Height

F101VIA
91
6W
735lm
80
2700K
567x43
582x54
75mm
151TRT.1-I723
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101VIA
91
6W
655lm
90
3000K
567x43
582x54
75mm
151TRT.1-I728
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101VIA
91
3.21W
378lm
80
2700K
292x43
303x54
75mm
150TRT.1-I1122
DATA SHEET
Photometric IES
Technical drawing
Photometric LDT


F101VIA
91
3.21W
334lm
90
3000K
292x43
303x54
75mm
150TRT.1-I1126
DATA SHEET
Photometric IES
Technical drawing
Photometric LDT


F101VIA
91
6W
756lm
80
3000K
567x43
582x54
75mm
151TRT.1-I724
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101VIA
91
6W
680lm
90
4000K
567x43
582x54
75mm
151TRT.1-I729
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101VIA
91
3.21W
394lm
80
3000K
292x43
303x54
75mm
150TRT.1-I1123
DATA SHEET
Photometric IES
Technical drawing
Photometric LDT


F101VIA
91
3.21W
350lm
90
4000K
292x43
303x54
75mm
150TRT.1-I1127
DATA SHEET
Photometric IES
Technical drawing
Photometric LDT


F101VIA
91
6W
794lm
80
4000K
567x43
582x54
75mm
151TRT.1-I725
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101VIA
91
11W
1065lm
90
3000K
567x43
582x54
75mm
151TRT.1-I735
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101VIA
91
3.21W
416lm
80
4000K
292x43
303x54
75mm
150TRT.1-I1124
DATA SHEET
Photometric IES
Technical drawing
Photometric LDT


F101VIA
91
5.46W
545lm
90
3000K
292x43
303x54
75mm
150TRT.1-I1132
DATA SHEET
Photometric IES
Technical drawing
Photometric LDT


F101VIA
91
6W
794lm
80
5000K
567x43
582x54
75mm
151TRT.1-I726
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101VIA
91
11W
1109lm
90
4000K
567x43
582x54
75mm
151TRT.1-I736
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101VIA
91
3.21W
419lm
80
5000K
292x43
303x54
75mm
150TRT.1-I1125
DATA SHEET
Photometric IES
Technical drawing
Photometric LDT
