KAUTTA 100
135KTA.1-I780
Wall or ceiling mounted recessed linear fixtures with symmetrical light distribution to achieve an effective accent, task or general lighting.
Linear fixture in 1146mm length and in a width of 58mm.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.
PMMA optics for controlling and directing the light.
Highly efficient linear printed circuit board.
Accessories available to create customized linear systems.
Built-in driver, included.
Electronic options for lighting control: DALI/DSI.
Passive temperature management.
Ceiling-mounted using steel support with screws.
Pre-wiring of 35cm cable 3x1mm2.
Other options available:
- Frameless recessed.
- Surface mounted.
- Pendant.
- Wall-mounted.
- Projector.
Luminous flux of the light source: 2405lm
Luminous flux of the luminaire: 2236lm
Luminaire efficiency: 157 lm/W
Light source power: 13 W
Luminaire power: 14.21 W
mA: 150 mA
Colour temperature: 3000K
Chromaticity Tolerance: MacAdam 3
CRI: 80
Beam angle: 43
Cd/ Klm: 704
Imax Cd: 1692
UGR: <19
Room dimensions X=4H/8H
Reflectance 20% | 50% | 70%
Luminaire spacing = 0.3m
Photobiological safety group: 1
This product contains a light source of energy efficiency class: C
Rated Median useful life: >60000h L80B10
Class: 1
IP: 40
Incandescent filament: 650°
Embedding dimensions: 1134x47

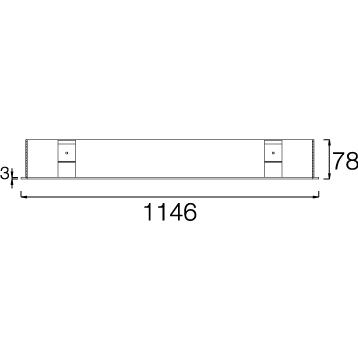

Luminaire dimensions: 1146x58
Electronic Equipment:
S: On/Off
D: DALI-2/DSI/switchDIM
SE: On/Off + 3 hours battery
DE: DALI-2/DSI/switchDIM+3 hours battery
DDE: DALI-2/DSI/switchDIM+3 hours battery (DALI)
There are available accessories for dimming devices.
*Add the suffix after the reference to indicate your electronic equipment choice.
