HORIZON 500 551HRN.1-I976
Pendant linear downlights with symmetrical light distribution to achieve an effective task or general lighting. Double light emission: up and down.
Linear fixture in 576mm length and in a width of 50mm.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.
Range of PMMA optics to achieve specific photometric results.
Highly efficient linear printed circuit board.
Accessories available to create customized linear systems.
Built-in driver, separate switching up and down.
Electronic options for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Passive temperature management.
Ceiling-mounted with adjustable steel wire suspension ( 1m ) and transparent electrical wire. Different suspension length on request.
It is possible to combine different lengths and junction modules in different ways to create customized design.
Luminaire luminous flux: 1546lm
Luminaire connected power: 13.88 W
Luminaire efficiency: 111 lm/W
Light source luminous flux: 1680lm
Light source power: 10 W
mA: 350 mA
Colour temperature: 3000K
Chromaticity Tolerance: MacAdam 3
CRI: 80

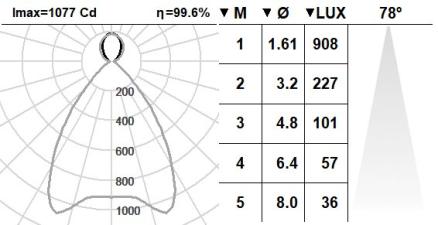

Beam angle: 78
Cd/Klm: 698
Imax Cd: 1173
UGR: <19
Photobiological risk: 1
This product contains a light source of energy efficiency class: C
Rated Median useful life: >54000h L80B10
Class: 1
IP: 20
Incandescent filament: 650
Luminaire dimensions: 576mm x 50mm
Weight: 3.16 Kg
Electronic Accessories:
S: On/Off
D: DALI-2/switchDIM/corridorFUNCTION
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
